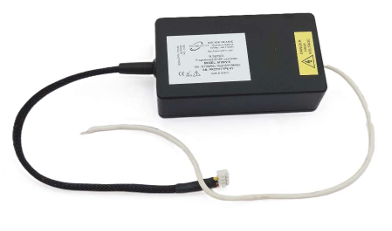

通用高壓比例DC/DC變換器
特點:
· 這些DC/DC轉換器是成比例的:輸出電壓與輸入電壓成比例
· 工作溫度范圍:-40/+70℃，無降額，無散熱器
· 隔離:無，輸出0V輸出接地
· 重量:約350g
· 屏蔽鑄鋁外殼
· 維度:L110xW63xH32mm
· 優異的TC: 0.1%/°C
· 負載穩定性:5%
· 低紋波(<0.3%)
· 符合RoHS標準的產品
· 封裝在UL樹脂中
· 高壓監視器輸出
訂購信息：
M10P2.5: +10kV
M10N2.5: -10kV
| Parameters | Specifications (at Tamb=25℃ unlessotherwise specified) |
| Input voltage Vin | From 0.7 to 24Vdc |
| Maximum output voltage | 10kV |
| Full load o/p voltage tolerance | ±5% |
| Polarity | Fixed,positive or negative,depends on the model |
| Nominal output current | 250μA |
| Typical Full load input current | ~200mA |
| Full load output ripple | 0.01%V/V |
| Typical frequency | ~100kHz |
| Output short circuit protection | Yes,permanent.Output short circuit current~1.5mA |
| Monitor output (yellow wire) | 1000:1,Zout=136kQ |
| Input reverse voltageprotection | None! |
| Voltage change No Load/Full Load | <+5%Typical (seegraph) |
| 0/p voltage Temperature Coefficient | 1000ppm/°℃ over the operating temperature range |
| Isolation Input/output | None,the OV output is internally connected to OV input |
| Operating temperature range | 0℃to+70℃ ambient |
| Storage temperature range | -40°℃to +85℃ |
