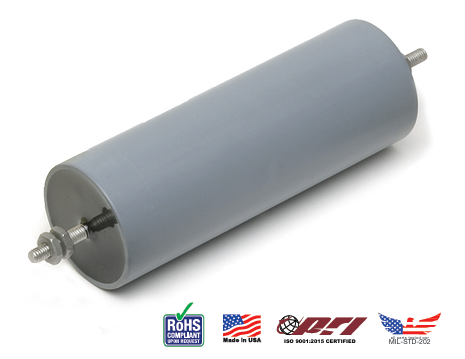

ARIZONA Capacitors W90系列高壓電容器3000V-150000kV
發布時間：2025-01-07 08:51:33 瀏覽：397
額定電壓范圍：3kVDC 至 150kVDC。
電容值最高可達 2.000 μF。
標準容差為 ±10%。
工作溫度范圍(G10 外殼材料)：
在全額定溫度下為 -55°C 至 60°C。
在 30% 降額下為 -55°C 至 85°C。
在 50% 降額下為 -55°C 至 105°C。
在 75% 降額下為 -55°C 至 125°C。
絕緣電阻在 25 - 50kΩ。
在 1,000Hz 下的損耗因子小于 0.6%。
經過 130% 額定電壓測試(持續 1 分鐘)。
符合 ISO 9001:2015 認證的生產流程。
符合 MIL-STD-202 測試標準。
可根據要求符合 ROHS 標準
型號參數
| 3kV MODELS |
| 5kV MODELS |
| 8kV MODELS |
| 10kV MODELS |
MODEL
| （μf) | DIA. | LENGTH | MODEL | (μf) | DIA. | LENGTH | MODEL | (μf) | DIA. | LENGTH | MODEL | (μf) | DIA. | LENGTH |
| W90501y | .100 | 1.00 | 2.50 | W90507y | .050 | 1.00 | 2.50 | W90513y | .025 | 1.00 | 3.75 | W90519y | .010 | 1.00 | 3.75 |
| W90502y | .250 | 1.00 | 3.75 | W90508y | 0.10 | 1.00 | 3.75 | W90514y | .050 | 1.00 | 4.25 | W90520y | .025 | 1.00 | 4.25 |
| W90503y | .500 | 1.00 | 5.75 | W90509y | .250 | 1.00 | 5.75 | W90515y | .100 | 1.00 | 5.75 | W90521y | .050 | 1.31 | 5.75 |
| W90504y | .750 | 1.31 | 5.75 | W90510y | .500 | 1.31 | 6.25 | W90516y | .250 | 1.31 | 7.25 | W90522y | .100 | 1.31 | 6.25 |
| W90505y | 1.00 | 1.31 | 6.25 | W90511y | .750 | 1.90 | 5.75 | W90517y | .500 | 1.90 | 7.25 | W90523y | .250 | 1.90 | 7.25 |
| W90506y | 2.00 | 1.90 | 6.25 | W90512y | 1.00 | 1.90 | 6.25 | W90518y | .750 | 2.38 | 7.25 | W90524y | .500 | 2.38 | 7.25 |
|
| 20kV MODELS |
| 30kV MODELS |
| 40kV MODELS |
| 50kV MODELS |
| MODEL | (μf) | DIA. | LENGTH | MODEL | (μf) | DA | LENGTH | MODEL | (μf) | DA. | LENGTH | MODEL | (μf) | DIA | LENGTH |
| W90525y | .005 | 1.00 | 5.75 | W90531y | .002 | 1.00 | 7.50 | W90537y | .001 | 1.00 | 7.50 | W90543y | .001 | 1.90 | 8.25 |
| W90526y | .010 | 1.31 | 6.25 | W90532y | .005 | 1.00 | 8.75 | W90538y | .002 | 1.00 | 8.50 | W90544y | .002 | 1.90 | 8.75 |
| W90527y | .025 | 1.90 | 6.25 | W90533y | .010 | 1.90 | 7.50 | W90539y | .005 | 1.90 | 8.50 | W90545y | .005 | 2.38 | 9.25 |
| W90528y | .050 | 2.38 | 6.25 | W90534y | .025 | 1.90 | 9.75 | W90540y | .010 | 1.90 | 9.50 | W90546y | .010 | 2.38 | 10.50 |
| W90529y | .100 | 2.38 | 8.25 | W90535y | .050 | 2.38 | 11.75 | W90541y | .025 | 2.38 | 11.75 | W90547y | .025 | 3.50 | 11.25 |
| W90530y | .250 | 3.50 | 8.75 | W90536y | .100 | 3.50 | 11.00 | W90542y | .050 | 3.50 | 11.00 | W90548y | .050 | 3.50 | 14.75 |
|
| 60kV MODELS | 80kV MODELS |
| 100kV MODELS |
| 120kV MODELS |
| MODEL | (uf) | DIA. | LENGTH | MODEL | (μf) | DIA. | LENGTH | MODEL | (μf) | DIA. | LENGTH | MODEL | (μf) | DIA | LENGTH |
| W90549y | .001 | 1.90 | 9.25 | W90555y | .001 | 2.38 | 10.50 | W90561y | .001 | 2.38 | 10.50 | W90567y | .001 | 2.38 | 14.50 |
| W90550y | .002 | 1.90 | 10.00 | W90556y | .002 | 2.38 | 10.50 | W90562y | .002 | 2.38 | 12.75 | W90568y | .002 | 3.50 | 14.50 |
| W90551y | .005 | 2.38 | 10.75 | W90557y | .005 | 2.38 | 12.25 | W90563y | .005 | 3.50 | 12.75 | W90569y | .005 | 3.50 | 17.00 |
| W90552y | .010 | 2.38 | 13.00 | W90558y | .010 | 3.50 | 13.25 | W90564y | .010 | 3.50 | 14.75 | W90570y | .010 | 4.00 | 17.00 |
| W90553y | .025 | 3.50 | 13.75 | W90559y | .025 | 4.00 | 15.00 | W90565y | .025 | 4.00 | 17.75 | W90571y | .025 | 4.00 | 24.50 |
| W90554y | .050 | 4.00 | 16.00 | W90560y | .050 | 4.50 | 19.75 | W90566y | .050 | 4.50 | 22.75 | W90572y | .050 | 4.50 | 28.25 |
|
| 150kV MODELS |
| Complete part number by replacingywith the following:
y=Case Material:PVC ICPV IPHN IG10
-PVC=PVC60°CLOWEST
-CPV=CPVC 85℃ LOW
-PHN=PHENOLIC 105℃ MEDIUM
-G10=G-10125℃HIGH
Standard termination is a 1/4-20×3/4"longelectro-tin plated brass stud.Other termination such as,threaded inserts &corona
retarding flanges,are available.Contact factory for detailed specifications. |
| MODEL | (uf) | DIA. | LENGTH |
| W90573y | .001 | 2.38 | 19.75 |
| W90574y | .002 | 3.50 | 19.75 |
| W90575y | .005 | 4.00 | 21.50 |
| W90576y | .010 | 4.00 | 25.00 |
| W90577y | .025 | 4.50 | 34.00 |
| W90578y | .050 | 5.56 | 37.50 |
